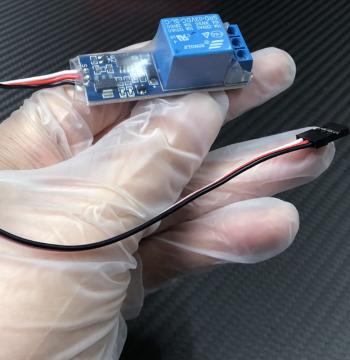

RJX Hobby RC PWM Electronic Relay Switch Navigation Lights Controller Universal K1 Power On-off Switches For Airplane DIY Model

RJX Hobby RC PWM Electronic Relay Switch Navigation Lights Controller Universal K1 Power On-off Switches For Airplane DIY Model

Features:
- Supports high voltage 5-12V receiver.
- 300W power relay.
- Transparent heat shrinkable tube helps users clearly see the working status of the LED and has a stylish appearance.
- Two indicator lights indicate working status.
- Max DC 30V 10A
- No signal protection, with power-on protection, easy to operate
- Input channels do not require calibration and are compatible with various brands of remote control equipment
- Small size and light weight

Application Scope:
- Remote control model rocket launch
- Remote smoke control
- Weaponsystem controls like real machines
- Smoke control for model aircraft
- Control of various remote switching systems
- Switch the signal of two cameras
- Control the opening and closing of various power supplies, such as navigation lights, searchlights, strobe lights, buzzers, etc.
- Control the camera shutter or switch the camera's recording and shooting modes.

Function Description:
-The remote control switch remotely controls the electrical equipment on the aircraft model through the switch channel on the remote control. The one-way LED dynamically displays the current switch status in real time, and can be started quickly without the need for an operating manual.

-The device requires no calibration and is accurately compatible with various brands of remote control devices.

Typical Application:

1. Connection Plug the signal input cable into the free receiving channel (it is recommended to use a two-level switch channel). This channel corresponds to the switch on the remote control.
-When connected to the receiver, the red indicator light lights up.
-When the switch channel is open, the blue working indicator light lights up and vice versa.

2. Working mode
-The red LED is always on; the signal is normal. Red LED flashes; no signal.
-The blue LED indicates the working status of the relay.

3. Trigger
- Turn on the switch of the remote control (OFF->on), the blue LED light will light up, and the relay will start working.
- Turn off the switch on the remote control (on->off), the blue LED will go out and the relay will not work.

Include:
1X RC Relay Switch
